Type 5610V - VQ - VP

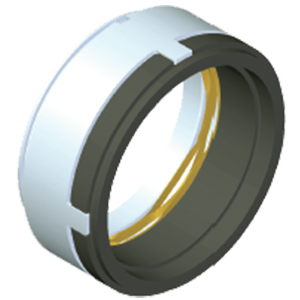

Universal Cartridge Ear Drive O-Ring Seal Head – Type 5610V – VQ – VP
The specially engineered, fully interchangeable ear drive O-ring seal head extends the functionality of the 5600 series product line for standard ANSI and large bore pumps.
The Type 5610V is a single cartridge using the ear drive O-ring pusher seal head.
The Type 5610VQ is a single cartridge arrangement using the ear drive O-ring pusher seal head along with a quench gland containing a carbon ring throttle bushing.
The Type 5620VP is a dual cartridge arrangement using the ear drive O-ring pusher seal head
Product Description Type 5610V – VQ – VP
The specially engineered, fully interchangeable ear drive O-ring seal head extends the functionality of the 5600 series product line for standard ANSI and large bore pumps.
The Type 5610V is a single cartridge using the ear drive O-ring pusher seal head.
The Type 5610VQ is a single cartridge arrangement using the ear drive O-ring pusher seal head along with a quench gland containing a carbon ring throttle bushing.
The Type 5620VP is a dual cartridge arrangement using the ear drive O-ring pusher seal head.
Table Parameters Type 5610V – VQ – VP
| Temperature Limits | -20°F to 400°F/-30°C to 205°C |
|---|---|
| Pressure Limits | Up to 75mm / 3.000″: 300 psi(g)max/21 bar(g) |
| Speed Limits | Up to 5,000fpm/25m/s |
Features Type 5610V – VQ – VP
- California Residents: PROPOSITION 65 WARNING
- Ear driven primary ring ensures maximum seal life under a wider range of operating conditions.
- Retrofits with existing 5600 seal heads.
- Optimized primary ring design provides greater reliability.
- Nonclogging wave spring is located outside of the product.
Recommended Applications Type 5610V – VQ – VP
- Process pumps
- Other rotating equipment
