Mechanical seal john crane

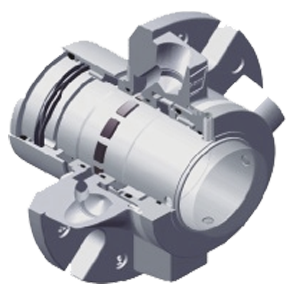

Type 4620P
Compact, General-duty, Dual Cartridge O-ring Seal with Pumping Ring
The Easiest Cartridge Seal Solution
The Type 4620P dual cartridge seal, available off the shelf the world over, brings a new era of affordability to fluid sealing with assured dependability. It’s the complete solution for sealing satisfaction in general industrial applications. This compact, single cartridge seal gives customers the best value for their sealing investment without compromise!
The Type 4620P meets key industry pump standards and is designed to permit use in rotating shaft equipment including ANSI/DIN pumps, close-coupled pumps, vertical pumps and similar rotating shaft equipment
Product Description Type 4620p
The 4600 series cartridge seal is the complete, affordable and off-the-shelf sealing solution for industrial liquid applications.
Type 4600 series meets key industry pump standards, and is designed to permit use in rotating shaft equipment including ANSI/DIN pumps, close-coupled pumps, vertical pumps, and similar rotating shaft equipment.
Table Parameters Type 4620p
| Temperature Limits | 266°F/130°C
|
|---|---|
| Pressure Limits | 220 psi(g)/15 bar(g) process pressure
|
| Speed Limits | 3600 rpm
|
| Size Limits | 1″/24mm to 5.500″/140mm |
Features Type 4620p
- California Residents: PROPOSITION 65 WARNING
- Dual seal arrangement — incorporates an elastomer O-ring as the dynamic secondary sealing member
- Inboard primary and mating ring reverse balance design allows for ID or OD pressurization, permitting the dual seal to operate as an
- unpressurized tandem or pressurized double seal
- Pumping ring is standard — no extra cost
- No extra inventory to carry
- Flow-optimized design with integral pumping ring arrangement
- Tangential piping ports
- Increased cooling flow and face lubrication, greatly extending seal life
- Cartridge design with factory-preset and pressure-tested assembly
- The only dual cartridge design with a centering ring eliminating need for external setting clips
- Eliminates potential assembly and installation errors
Recommended Applications Type 4620p
- Water and wastewater
- Pulp and paper
- Power generation
- Chemical
- Food and beverage
- Pharmaceutical
- Mining
- Steel production
- General industrial
