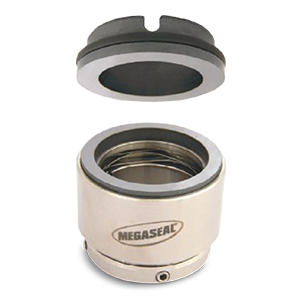

Megaseal Mechanical seal
MSHJ-92N
description Megaseal Mechanical seal MSHJ-92N
- 1,1 – Shrink-fitted face and housing
- 1,2 – Drive collar
- 1,3 – O – Ring
- 1,4 – O – Ring
- 1,5 – Spring
- 1,6 – Set screws
- 2 – Stationary Seat
- 3 – O – Ring (For Stationary Seal)
Technical design Megaseal Mechanical seal MSHJ-92N
Technical features Megaseal seal MSHJ-92N :
- Single seal
- Conical Spring
- Balanced
- Independent of rotation direction
Operating Range Megaseal MSHJ-92N
- d1 = 18 – 100mm
- p = 0,8 – 25bar
- t = -50 / 220°C
- Vg = 20m/sn
Materials Megaseal MSHJ-92N
- Rotary seal faces: Carbon ring Shrink-fitted into the seal face housing
- Stationary seal faces: Silicon carbide, Ceramic, Tungsten carbide, Chromium Nickle 316 ti
- Elastomers: Viton (FKM), EPDM, Nitril (NBR) Silicon
Stationary Seat Alternatives Megaseal MSHJ-92N
- G-16 G-9
