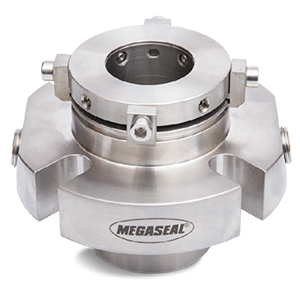

Megaseal Mechanical seal
MS - KARTUS 910 - T
description Megaseal Mechanical seal MS – KARTUS 910 – T
- 1 – Stationary seal face
- 2 + 5 + 7 – O – Ring
- 3 – Spring
- 4 – Rotary seal face
- 6 – Bushes
- 9 – Set screws
- 11 – Cover
- 14 – Gasket

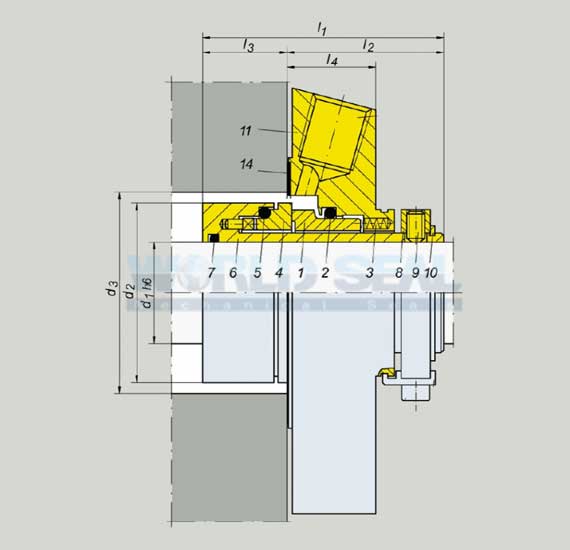

Technical design Megaseal Mechanical seal MS – KARTUS 910 – T
Technical features Megaseal seal MS – KARTUS 910 – T :
- Single seal cartridge
- Balanced
- Cooled with liquid
- Independent of rotation direction
Operating Range Megaseal MS – KARTUS 910 – T
- p = 25bar
- d1 = 25 – 100mm
- t = -40 / 220°C
- Vg = 10 m/sn
Materials Megaseal MS – KARTUS 910 – T
- Rotary seal faces: Chromium Nickle 316 ti Silicon carbide, Tungsten carbide
- Stationary seal faces: Silicon carbide, Carbon, Tungsten carbide, Chromium Nickle 316 ti
- Elastomers: Viton (FKM), EPDM, Nitril (NBR) Silicon
Stationary Seat Alternatives Megaseal MS – KARTUS 910 – T
- Standard seats
