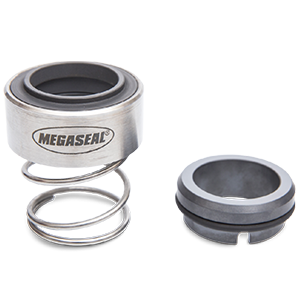

Megaseal Mechanical seal
MS - H 12 N
description Megaseal Mechanical seal MS – H 12 N
- 1,1 – Shrink-fitted face and collar
- 1,2 – O – Ring (For rotary seal)
- 1,3 – Thrust Ring
- 1,4 – Spring
- 2 – Stationary Seat
- 3 – O – Ring (For Stationary Seal

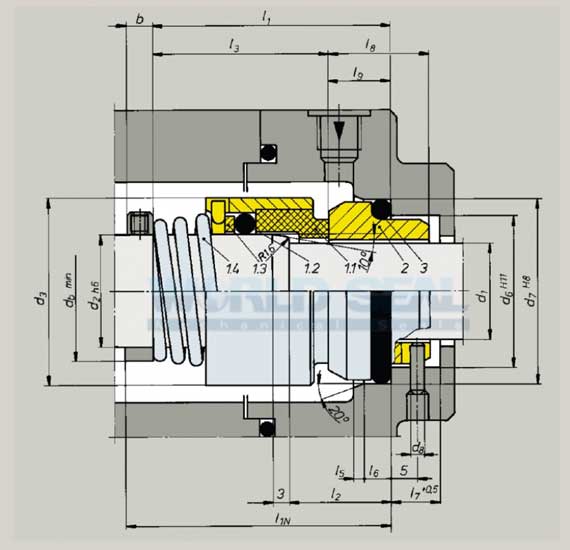

Technical design Megaseal Mechanical seal MS – H 12 N
Technical features Megaseal seal MS – H 12 N :
- Single seal
- Balanced
- Conical spring dependent of rotation direction
Operating Range Megaseal MS – H 12 N
- d1 = 10 – 80mm
- p = 25bar
- t = -50 / 220°C
- Vg = 20m/sn
Materials Megaseal MS – H 12 N
- Rotary seal faces: Shrink-fitted carbon ring
- Stationary seal faces: Silicon carbide, Ceramic, Tungsten carbide, Chromium Nickle 316 ti
- Elastomers: Viton (FKM), EPDM, Nitril (NBR) Silicon
Stationary Seat Alternatives Megaseal MS – H 12 N
- G-9 G-60
