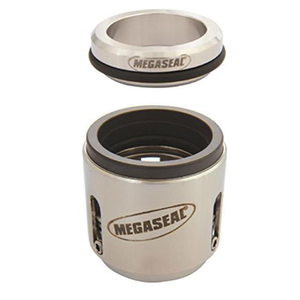

Megaseal Mechanical seal
MS 62
description Megaseal Mechanical seal MS 62
- 1,1 – Seal face
- 1,2 – O – Ring (For rotary seal)
- 1,3 – Housing
- 1,4 – Spring
- 1,5 – Set screws
- 1,6 – Drive collar
- 2 – Stationary Seat
- 3 – O – Ring (For Stationary Seal)

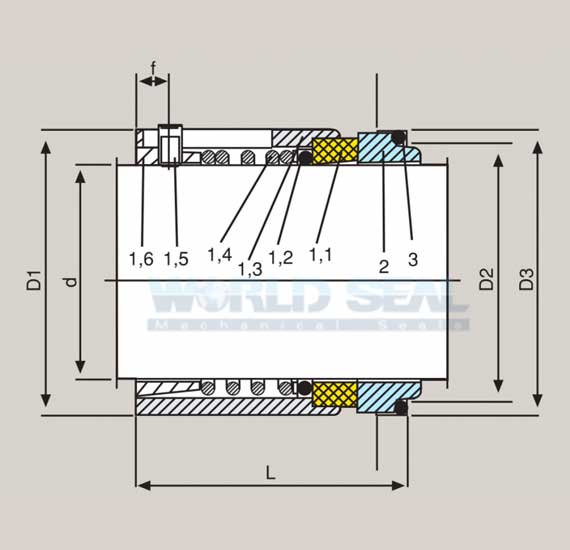

Technical design Megaseal Mechanical seal MS 62
Technical features Megaseal seal MS 62 :
- Single seal
- Unbalanced
- Independent of rotation direction
Operating Range Megaseal MS 62
- d1 = 18 – 65mm
- p = 10bar
- t = -20 / 220°C
- Vg = 20m/sn
Materials Megaseal MS 62
- Rotary seal faces: Carbon
- Stationary seal faces: Chromuim Nickle 316 ti Silicon carbide, Ceramic, Tungsten Carbide
- Elastomers : Viton (FKM), EPDM
Stationary Seat Alternatives Megaseal MS 62
- G-9 G-4
