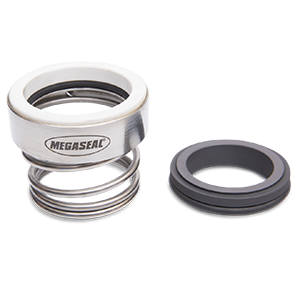

Megaseal Mechanical seal
MS-50
description Megaseal Mechanical seal MS-50
- 1,1 – Seal face
- 1,2 – O – Ring (For rotary seal)
- 1,3 – Housing
- 1,4 – O – Ring
- 1,5 – Spring
- 2 – Stationary Seat
- 3 – O – Ring (For Stationary Seal)

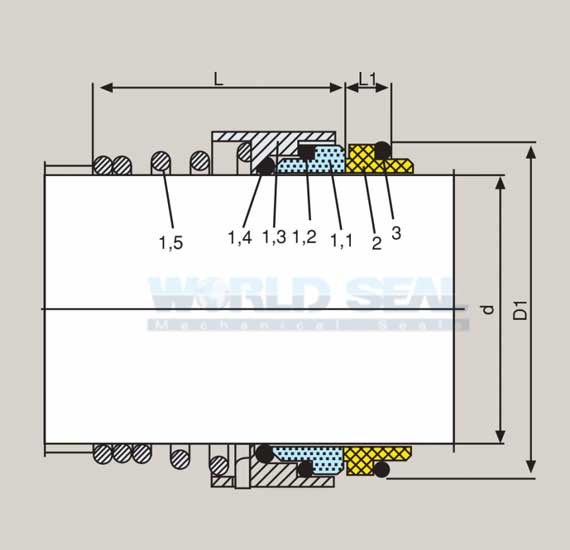

Technical design Megaseal Mechanical seal MS-50
Technical features Megaseal seal MS-50 :
- Single seal
- Unbalanced
- Dependent of rotation direction
Operating Range Megaseal MS-50
- d1 = 14 – 150mm
- p = 10bar
- t = -50 / 220°C
- Vg = 20m/sn
Materials Megaseal MS-50
- Rotary seal faces: Carbon, Silicon carbide, Tungsten carbide
- Stationary seal faces: Silicon carbide, Ceramic, Tungsten Carbide, Chromuim Nickle 316 ti
- Elastomers: Viton (FKM), EPDM, Nitril (NBR) Silicon
Stationary Seat Alternatives Megaseal MS-50
- G-9 G-4
