Megaseal Mechanical seal
MS – 481D – MS – 481DR
description Megaseal Mechanical seal MS – 481D – MS – 481DR
- 1 + 2 – Seal face
- 4 – Housing
- 5 – Spring
- 6 + 7 – O – Ring (For rotary seal)
- 8 – Set screws
- 11 + 12 – Stationary seat
- 13 + 14 + 15 – O – Ring (For stationary seal)

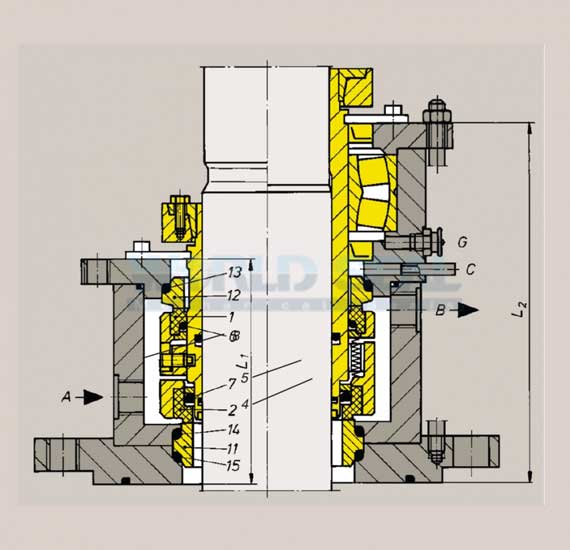

Technical design Megaseal Mechanical seal MS – 481D – MS – 481DR
Technical features Megaseal seal MS – 481D – MS – 481DR :
- Double seal
- Unbalanced
- Available with or without bearings
- Independent of rotation direction
Operating Range Megaseal MS – 481D – MS – 481DR
- d1 = 40 – 200mm
- p = 6bar
- t = -30 (-80) / +220 (350)°C
- Vg = 2 (5) m/sn
Materials Megaseal MS – 481D – MS – 481DR
- Rotary seal faces: Chromium Nickle 316 ti Silicon carbide, Tungsten carbide
- Stationary seal faces: Silicon carbide, Carbon, Tungsten carbide, Chromium Nickle 316 ti
- Elastomers: Viton (FKM), EPDM, Nitril (NBR) Silicon
Stationary Seat Alternatives Megaseal MS – 481D – MS – 481DR
- G-9 G-13 G-4 G-6
