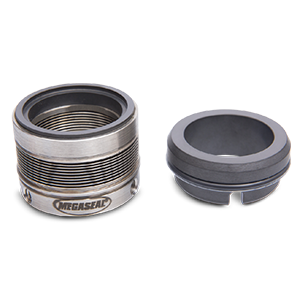

Megaseal Mechanical seal
MS - 350
description Megaseal Mechanical seal MS – 350
- 1,1 – Seal face and metal bellows
- 1,2 – O – Ring (For rotary seal)
- 1,3 – Drive collar
- 1,6 – Set screws
- 2 – Stationary Seat
- 3 – O – Ring (For Stationary Seal)

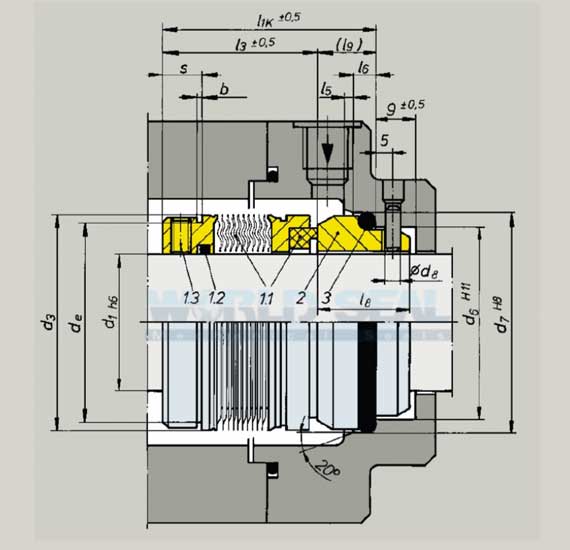

Technical design Megaseal Mechanical seal MS – 350
Technical features Megaseal seal MS – 350 :
- Single seal
- Balanced
- Metal bellows lndependent of rotation direction
Operating Range Megaseal MS – 350
- d1 = 16 – 100mm
- p = 25bar
- t = -40 / 220°C
- Vg = 20m/sn
Materials Megaseal MS – 350
- Rotary seal faces: Carbon, Silicon carbide, Tungsten Carbide
- Stationary seal faces: Chromuim Nickle 316 ti Silicon carbide, Ceramic, Tungsten Carbide
- Elastomers : Viton (FKM), EPDM
Stationary Seat Alternatives Megaseal MS – 350
- G-16 G-9 G-4 G-6
