Megaseal Mechanical seal
MS 32 N - MS 37 N
description Megaseal Mechanical seal MS MS 32 N – MS 37 N
- 1+5 – Shrink-fitted face and housing
- 2 – O – Ring (For rotary seal)
- 3 – Conical Spring
- 4 – Thrust Ring
- 6 – Stationary Seat
- 7 – O – Ring (For stationary seal)

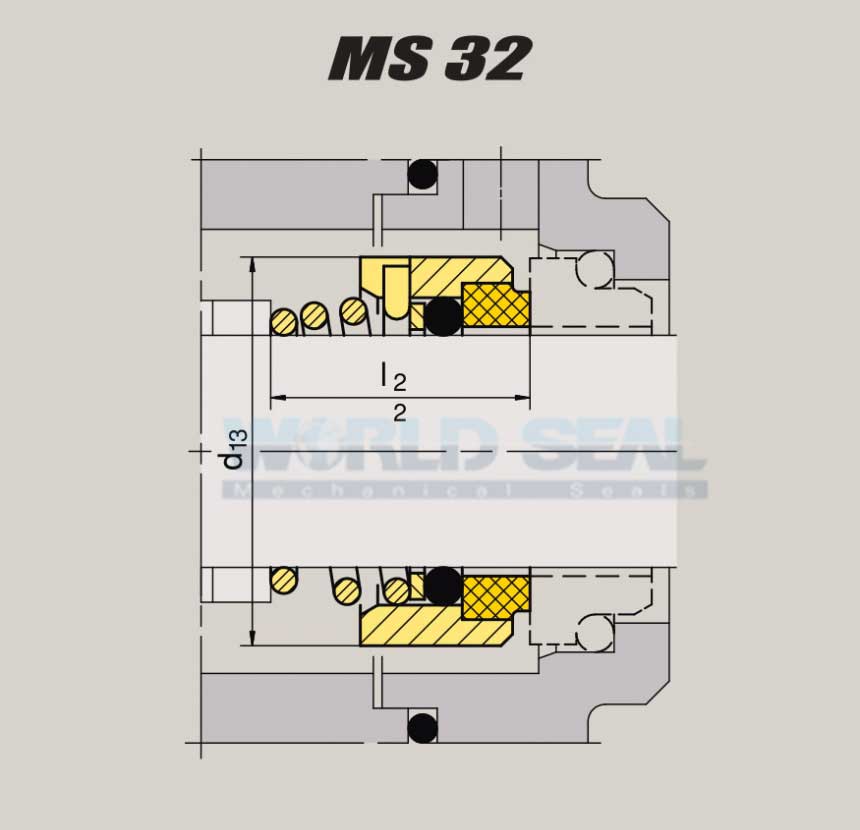

Technical design Megaseal Mechanical seal MS 32 N – MS 37 N
Technical features Megaseal seal MS 32 N – MS 37 N :
- Single seal
- Unbalanced
- Conical Spring
- Dependent of rotation direction
Operating Range Megaseal MS 32 N – MS 37 N
- d1 = 6 – 80mm
- p = 10bar
- t = -50 / 220°C
- Vg = 20m/sn
Materials Megaseal MS 32 N – MS 37 N
- Rotary seal faces: Silicon carbide, Tungsten carbide, Carbon
- Stationary seal faces: Silicon carbide, Ceramic, Tungsten carbide, Chromium Nickle 316 ti
- Elastomers: Viton (FKM), EPDM, Nitril (NBR) Silicon
Stationary Seat Alternatives Megaseal MS 32 N – MS 37 N
- G-9 G-13 G-60 G-6 G-4
