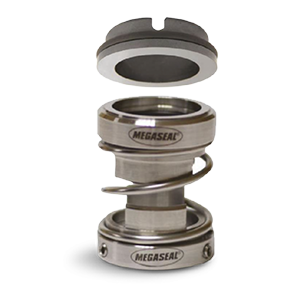

Megaseal Mechanical seal
MS-250
description Megaseal Mechanical seal MS-250
- 1,1 – Seal face
- 1,2 – Ring (For rotary seal)
- 1,3 – Housing
- 1,4 – Spring
- 1,5 – Drive Collar
- 1,6 – Set screws
- 2 – Stationary Seat
- 3 – O – Ring (For Stationary Seal)
Technical design Megaseal Mechanical seal MS-250
Technical features Megaseal seal MS-250 :
- Single seal
- Unbalanced
- Independent of rotation direction
Operating Range Megaseal MS-250
- d1 = 20 – 100mm
- p = 12bar
- t = -35 / 220°C
- Vg = 20m/sn
Materials Megaseal MS-250
- Rotary seal faces: Carbon, Silicon carbide, Tungsten carbide
- Stationary seal faces: Silicon carbide, Ceramic, Tungsten carbide, Chromium Nickle 316 ti
- Elastomers: Viton (FKM), EPDM, Nitril (NBR) Silicon
Stationary Seat Alternatives Megaseal MS-250
- G-9 G-4
