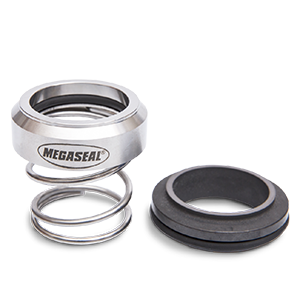

Megaseal Mechanical seal
MS-20
description Megaseal Mechanical seal MS-20
- 1,1 – Seal face
- 1,2 – O – Ring (For rotary seal)
- 1,3 – Spring
- 2 – Stationary Seat
- 3 – O – Ring (For Stationary Seal)

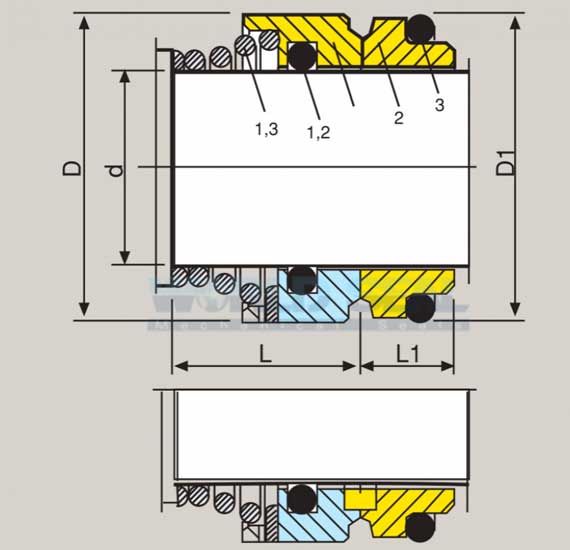

Technical design Megaseal Mechanical seal MS-20
Technical features Megaseal seal MS-20 :
- Single Seal
- Unbalanced
- Dependent of rotation direction
Operating Range Megaseal MS-20
- d1 = 6 – 110mm
- p = 10bar
- t = -50 / 220°C
- Vg = 20m/sn
Materials Megaseal MS-20
- Rotary seal faces: Chromium Nickle 316 ti Silicon carbide, Tungsten carbide
- Stationary seal faces: Silicon carbide, Carbon, Tungsten carbide, Chromium Nickle 316 ti
- Elastomers: Viton (FKM), EPDM, Nitril (NBR) Silicon
Stationary Seat Alternatives Megaseal MS-20
- G-45 G-9 G-4
