Type 502

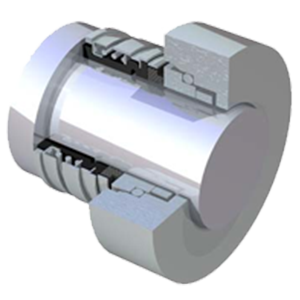

Unitized Elastomer Bellows Seal Type 502
The Type 502 mechanical seal is one of the best-performing elastomeric bellows seals available. It is suitable for general service and provides excellent performance in a wide range of hot water and mild chemical duties. It is specifically designed for confined spaces and limited glands lengths.
Design Features Type 502
Completely assembled one-piece design for fast installation
• Unitized design incorporates positive retainer/key drive from
bellows
• Non-clogging, single coil spring provides greater
dependability than multiple spring designs. Will not be
affected by build-up of solids
• Full convolution elastomeric bellows seal designed for
confined spaces and limited gland depths. Self-aligning
feature compensates for excessive shaft end play and run-out
Table Parameters Type 502
| Temperature Limits | -40°F to 400°F/40°C to 205°C (depending on materials used)
|
|---|---|
| Pressure Limits | 580 psi(g)/40 bar(g)
|
| Speed Limits | Up to 2500fpm/13m/s, depending on configuration and shaft size
|
Features Type 502
- California Residents: PROPOSITION 65 WARNING
- Full convolution elastomeric bellows seal designed to fit into confined spaces including DIN24960.
- Unitized for ease of installation and tolerant of shaft play and run-out.
- Bi-directional and robust drive to the seal face eliminates stresses on the bellows.
- Available in metric sizes from 14mm to 100mm.
Recommended Applications Type 502
- Process pumps
- Other rotating equipment
