Mechanical seal H-brinker
HBPulace

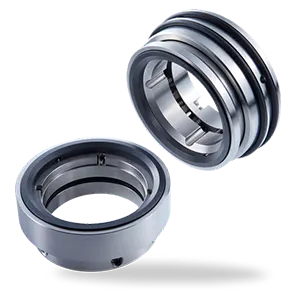

![mechanical-seal-H-Brinker-HBPulace](https://worldseal.org/wp-content/uploads/2023/09/mechanical-seal-HBPulace.webp)
Table of Mechanical seal descriptions HBPulace
Item | Description |
1.1 | Seal face |
1.2 | O-Ring |
1.3 | Retainer |
1.4 | O-Ring |
1.5 | Adapter |
1.6 | Spring |
1.7 | O-Ring |
1.8 | Drive screw |
2.1 | Seat |
2.2 | O-Ring |
2.3 | Retainer |
3 | Drive collar |
4 | O-Ring |
5 | O-Ring |
6 | Set screw |
Features Seal HBPulace
- Single seal
- Balanced
- Independent of direction of rotation
- Stationary multiple springs
- Springs and pins not in contact with the medium
Advantages mechanical seal HBPulace
- Stationary seat and/or seal face replaceable
- Can be adopted under positive
- pressure or under back pressure
- Operation in vacuum without additional seat locking possible
Materials Seal HBPulace
- Seal face and seat: Silicon carbide (Q1), Tungsten carbide (U7)
- Secondary seals: EPDM (E)
- Metal parts: CrNiMo steel (G)
Recommended applications seal HBPulace
- Sugar industry
- Pulp and paper industry
- Highly concentrated black water
- Green water
- White water
- Pulp suspensions
- Chemical solutions
- Alkaline solutions
- Slurries
- Highly viscous liquids
- Raw sludge pumps
- Thick juice pumps
- Conveying and bottling of dairy products
Dimension Table Seal HBPulace
d | d1 | d2 | d3 | l | l1 |
---|---|---|---|---|---|
20 | 46 | 51 | 57 | 71 | 34 |
25 | 51 | 58 | 64 | 71 | 34 |
30 | 56 | 63 | 69 | 71 | 34 |
35 | 62 | 68 | 74 | 75 | 37 |
40 | 69 | 76 | 82 | 80 | 38 |
45 | 78 | 83 | 89 | 80 | 38 |
50 | 78 | 86 | 92 | 80 | 38 |
55 | 86 | 92 | 98 | 80 | 38 |
60 | 91 | 98 | 104 | 78 | 37 |
65 | 97 | 102 | 108 | 81 | 38 |
70 | 102 | 109 | 115 | 80 | 38 |
75 | 107 | 114 | 120 | 82 | 39 |
80 | 112 | 119 | 125 | 82 | 40 |
85 | 118 | 124 | 130 | 85 | 40 |
90 | 128 | 137 | 143 | 85 | 42 |
95 | 128 | 137 | 143 | 85 | 42 |
100 | 135 | 144 | 150 | 85 | 42 |
