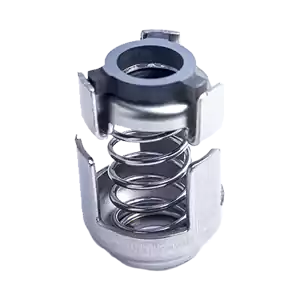

Mechanical seal H-brinker
HBGRK
Operating range Mechanical seal HBGRK
Temprature: -40 to +200 c
Pressure: <=1.6 mpa
Speed: <=15 m/s
Stationary and rotating face: SIC/SIC
Material of metal part:AISI304
Application: CDLF, Grundfos, CNS
Rubber type: EPDM
Shaft diameter: 12-22
Width of transport packing: 8cm
Length of transport packing: 8cm
Height of transport packing: 10cm
The material can be changed based on the type of order
Material Mechanical seal HBGRK
- Stationary and rotating face: SIC/SIC
- Material of metal part:AISI304
- Rubber type: EPDM
Dimension Table Seal HBGRK
| d1 | d3 | d7 | L3 | L4 |
| H6 | Max | h8 | 0.5 | |
| 12 | 29 | 23 | 40 | 7.5 |
| 16 | 34 | 27 | 38.6 | 11.5 |
| 22 | 43 | 37 | 37 | 16 |
