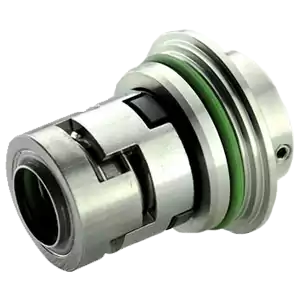

Mechanical seal H-brinker
HBCR-16
Operating range Mechanical seal HBCR-16
Temprature: -40 to +200 c
Pressure: <=1.6 mpa
Speed: <=15 m/s
Stationary and rotating face: SIC/SIC
Material of metal part:AISI304
Application: CDLF, Grundfos, CNS
Rubber type: EPDM
Shaft diameter: 16
Width of transport packing: 8cm
Length of transport packing: 8cm
Height of transport packing: 10cm
The material can be changed based on the type of order
Material Mechanical seal HBCR-16
Rotary Face : Silicon carbide (RBSIC) O
Tungsten carbide W1
Stationary Seat : Silicon carbide (RBSIC) O
Carbon graphite resin impregnated Ak
Tungsten carbide W1
Auxiliary Seal: Ethylene-Propylene-Diene (EPDM) E
Fluorocarbon-Rubber (Viton) V
Spring: Stainless Steel (SUS304) F
Stainless Steel (SUS316) G
Metal Parts: Stainless Steel (SUS304) F
Stainless Steel (SUS316) G
Dimension Table Seal HBCR-16
| D1 | D3 | D7 | D8 | M | L | L1 | L2 | D8 |
| (H6) | (Max) | (H8) | (0.5) | (H8) | ||||
| 16 | 30.50 | 34 | – | M35x1.5 | 57 | 20 | 50.50 | 40.80 |
